Overview
 | SZX7 Stereo MicroscopeThe SZX7 stereo microscope’s Galilean optical system offers excellent image quality, especially when using a digital microscope camera. The microscope is suited for a wide range of imaging applications in life science, materials science, production, and QC inspection, offering high color fidelity optics, a 7:1 zoom ratio, and a universal LED stand. |
|---|
The SZX7 stereo microscope features a 7:1 zoom ratio, includes built-in electrostatic discharge protection, and uses an advanced Galilean optical system for brilliant, highly resolved images. Ergonomic features include easily accessible microscope controls and adjustable observation tubes for comfortable viewing at an affordable price. |
|---|
Experience Optical Excellence
Galilean Optical System Diagram | Galilean Optical SystemThe Galilean optical system (0.8x–5.6x zoom range) combines with the improved coatings and large numerical aperture in our distortion-free objective lens series to provide an optimal image for your sample at any appropriate magnification. |
|---|
Lineup of Objective Lenses | Choose from Eight Interchangeable ObjectivesDFPL2X / DPFL1.5X / DFPL0.75X / DFPL0.5X DFPLAPO1.25X / DFPLAPO1X-4 SZX-ACH1.25X / SZX-ACH1X |
|---|
Versatile Illumination Solutions | |
LED Illumination: Combined Reflected and Transmitted Light StandUltra-thin LED stands are energy efficient and provide long-lasting illumination. | LED Illumination Stand |
Space-Saving IlluminatorThis specially designed fiber optic light source can mount directly onto the stand for a clean and tidy workspace. Available with single or double interlock and ring light guides, this system provides bright and long-lasting illumination. | Dual Interlock Light Guide Illuminator |
Coaxial Reflected Illumination SystemUsed with the dual flexible light guide, this illuminator provides bright, even lighting without the need for centering adjustments to the lamp. | Coaxial Reflected Light Illuminator |
White LED Illuminator SystemOur long-lasting ring light illuminator with minimal thermal effect and high brightness is ideal for homogeneous lighting. | White LED Ring Light |
Need assistance? |
Ergonomics
Work Comfortably and ProductivelyErgonomic Instruments Enable Natural Posture, Reduced Stress, and Increased ProductivityThe ergonomic long tilting trinocular provides an optimized work position by bringing the microscope closer to the user, while the extendable eyepoint adjuster provides flexibility for users of different heights. The SZX2 series’ ergonomic instruments reduce stress during observation by providing the most comfortable position for each user, increasing work efficiency. |
 |  |
Ergonomic Design Based on 3D CAD AnalysisThe microscope body and stand feature precisely curved contours developed through careful 3D computer aided design (CAD) analysis. Key ergonomic features help reduce fatigue during periods of long observation and feel smooth and comfortable to the touch. |
 |
Convenient Front-Access OperationThe most frequently used knobs and switches are easily accessible to maximize operator comfort and reduce back strain. |
 |
Precise Recall of Specific Magnification SettingsMany inspection tasks require using the same zoom magnification setting to ensure consistent and comparable results. The integrated click-stop mechanism provides quick and easy access to this important function. The zoom knob stopper enables the user to accurately choose their desired magnification, and the setting in use is clearly displayed on the front control panel. |  |
Eyepieces That Reduce Fatigue and Exclude DustThe eyepieces feature a pupillary aberration control mechanism, keeping the image visible even if the operator’s eyes move. This lessens operator fatigue during long observations. The unique eyepiece mounting design excludes dust particles and keeps the eyepiece firmly in place, enabling clear images and an ergonomic eyepiece position. |
|
Electrostatic Discharge (ESD) Safe DesignAll microscope bodies and accessories are ESD-safe and can discharge static electricity from 1000 V down to 100 V in less than 0.2 seconds, helping to protect the equipment and prevent sample damage. |
Need assistance? |
Digital Imaging and Documentation
Universal Stand and Digital Imaging
| |
Combination of SZ2-ST | Curved ultra-slim stand with contoured base plates provides easy sample access while reducing stress and strain on your hands and arms. For inspecting or assembling large samples, Evident offers a variety of adjustable and ESD safe boom stands. Large platform stands are also available and, if required, can accommodate 400 mm and 600 mm auxiliary posts. SZ2-STU2: The arm's angle and length can freely be adjusted. |
Combination of SZ2-STU2 |
Combination of SZ2-STU3 |
Record and Store Digital ImagesEvident offers a full line of digital cameras that adapt to the SZX7. They are available as a standalone or PC-controllable system. Software packages vary from simple image capture to measurement, report generation, and database archiving. See Digital Cameras |
All-in-Focus Imaging Made SimpleReconstructing an all-in-focus image is simple in our software. Manually acquire images from the Live EFI (extended focus imaging) function to obtain fully focused views of thick, rough, or uneven samples.
|
Flexible Workflows from QC Inspection to Failure AnalysisPRECiV software offers a flexible workflow solution for QC inspection, materials analysis, and failure analysis. Pair it with the SZX7 and a digital camera to seamlessly acquire images, process them, and make 2D measurements. Advanced imaging and analysis functions include panoramic views, extended focus images, and particle analysis. Zoom into Efficiency

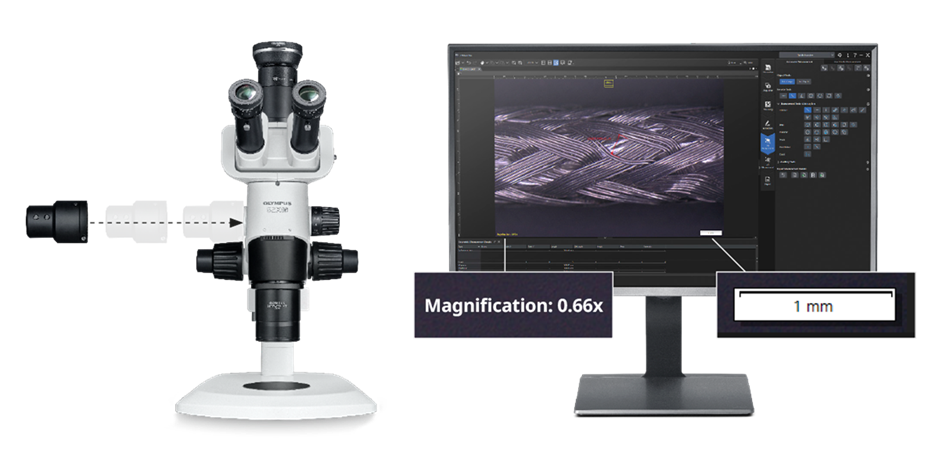

To speed up QC inspection or failure analysis work, combine the SZX7 with our SZX2-ZMS zoom magnification sensor. It automatically records the zoom magnification in your PRECiV software, enabling the correct 2D geometric measurements without the need to manually enter the magnification. From imaging to reporting, all dimensions are under control. Now you can zoom in and measure the details faster, adding confidence and efficiency to your inspections. |
Need assistance? |
Specifications
| Observation Method > Fluorescence (Blue/Green Excitations) | ✓ | |
|---|---|---|
| Observation Method > Simple Polarized Light | ✓ | |
| Observation Method > Brightfield | ✓ | |
| Observation Method > Darkfield | ✓ | |
| Observation Method > Oblique | ✓ | |
| Zoom > Zoom Ratio | 7 | |
| Zoom > Magnification Indication | 0.8, 1, 1.25, 1.6, 2, 2.5, 3.2, 4, 5, 5.6 | |
| Zoom > Features | SZX-ZB7 Click stop for each zoom magnification: ON-OFF switching possible | |
| Zoom > Zoom Magnification Sensor | Optional SZX2-ZMS records the zoom magnification in PRECiV v. 2.2.1 or later | |
| Optics > Galilean Optical System | ✓ | |
| Illuminator > Fluorescence Illuminator > Hg Lamp |
| |
| Illuminator > Fluorescence Illuminator > Light Guide Illumination |
| |
| Focus > Focusing Mechanism > Coarse Focus | ✓ | |
| Focus > Load Capacity |
| |
| Focus > Coarse Handle Stroke |
| |
| Focus > Coarse Handle Stroke per Rotation |
| |
| Focus > Fine Handle Stroke per Rotation |
| |
| Observation Tubes > Widefield (FN22) > Binocular | ✓ | |
| Observation Tubes > Widefield (FN22) > Trinocular | ✓ | |
| Observation Tubes > Widefield (FN22) > Tilting Trinocular | ✓ | |
| Observation Tubes > Widefield (FN22) > Ergonomic Long Tilting Trinocular | ✓ (Intermediate magnification is 1.25X) | |
| Observation Tubes > Tube Inclination Angle |
| |
| Observation Tubes > Trinocular Tube Light Path Selection (Camera: Observation) |
| |
| Observation Tubes > Interpupillary Distance Adjustment |
| |
| Extendable Eyepoint Adjuster | Height adjustment range: 30–150mm, (with a scale attached) | |
| Stands > Standard Stand | ✓ | |
| Stands > Optional Bases and Stands > Quad-Position LED Transmitted Light Illumination Base | ✓ | |
| Stands > Optional Bases and Stands > Single-Position LED Transmitted Light Illumination Base | ✓ | |
| Stands > Optional Bases and Stands > Large Stand | ✓ | |
| Stands > Optional Bases and Stands > Universal Stand | ✓ | |
| Dimensions (W × D × H) | 194 mm × 253 mm × 403 mm (7.64 in. × 9.96 in. × 15.87 in.) | |
| Operating Environment > Indoor Use > Ambient Temperature | 0–40 ºC (32–104 ºF) | |
| Operating Environment > Indoor Use > Maximum Relative Humidity | 30–90% | |
| Eyepiece |
| |
| Objectives | DFPL0.5X-4, WD 171 mm, NA 0.05 | |
| Fluorescence Illuminators | Coaxial fluorescence illuminator |
