Overview

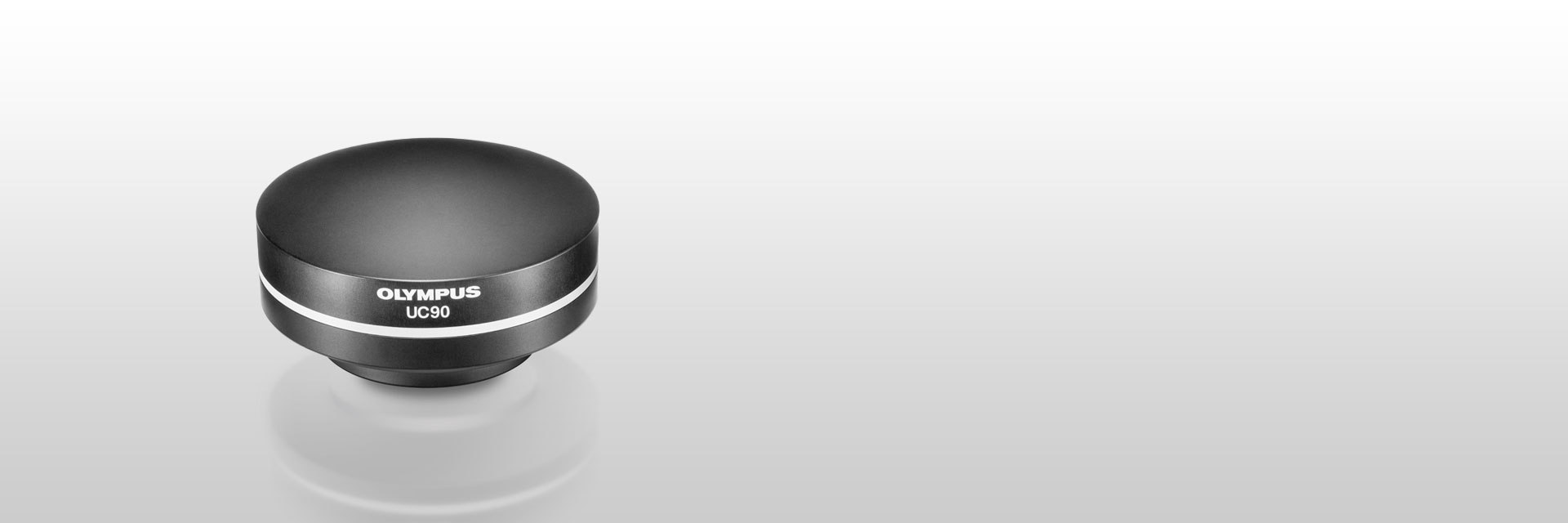

 | See the DetailsThe 9-megapixel UC90 digital microscope camera makes high-quality microscope imaging easy and versatile. This product has been discontinued, check out our current product |
|---|
See More: Discover Your Sample
| Related Videos |
|---|
Show More: Flexible Camera Operation Modes
|
Save Time: Fast Digital Microscope Camera ImagingCapture an image of a larger area than what you can see through the oculars without sacrificing details.
|
The UC90 is not for clinical diagnostic use. |
Applied Technologies

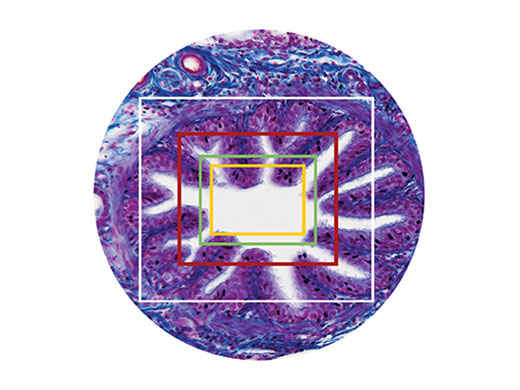

Maximize Your Microscope Camera Image Information
|
|
|---|
  | Noise-Free Digital Images
|
|---|
4K UHD Digital Microscope Camera Images and Video
| Bone Section | 10x Magnification Cerebellum Section | 10x Magnification Intestine Section | 10x Magnification Lung Section | 10x Magnification |
|---|

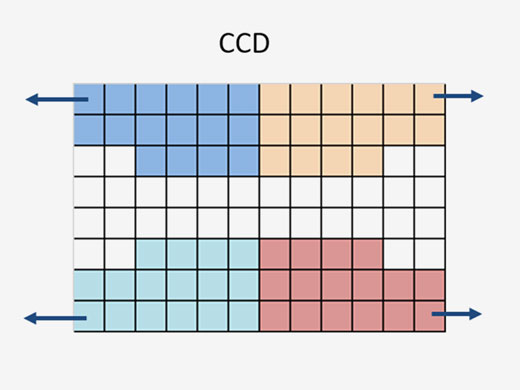

Quad-tap readout enables 4 times faster fps than single readout. | Quad-Tap ReadoutFast frame rates up to 19.5 frames per second (fps) at full resolution thanks to 4 analog-to-digital signal converters. |
Easy Installation and Fast Data TransferUSB 3.0 interface provides fast image transfer and easy connection to compatible computers with a single cable. |
Specifications
| センサータイプ |
| |
|---|---|---|
| 最大記録画素数 | 3384 (W) × 2708 (H) pixels (5:4), 3840 (W) × 2160 (H) pixels (4K Ultra HD 16:9), 1920 (W) × 1080 (H) pixels (Full HD 16:9) | |
| 画素サイズ | 3.69 × 3.69 µm | |
| アナログデジタル変換 | 14 bits | |
| ビニング |
| |
| 露光時間 | 39 μs–60 s | |
| フレームレート | Up to 19.5 fps at 3384 × 2708 pixels (5:4) | |
| 冷却方式 | Passively cooled | |
| 外部トリガー | - | |
| 出力データI/F | USB 3.0 | |
| 部分読み出し | ✓ | |
| 対応OS | Windows 10 64 bit | |
| スタンドアローン | - |
