 | Stunning Detail, Faster Discovery: IXplore™ IX85 SpinSR MicroscopeCapture ultra-small cellular dynamics in stunning detail with the IXplore™ IX85 SpinSR super-resolution microscope system. Designed for prolonged cell viability in time-lapse experiments, the IX85 SpinSR combines fast image acquisition, advanced algorithms, and XY resolution down to 120 nm. |
|---|
Capture ultra-small cellular dynamics in stunning detail with the IXplore IX85 SpinSR super-resolution microscope system.
|

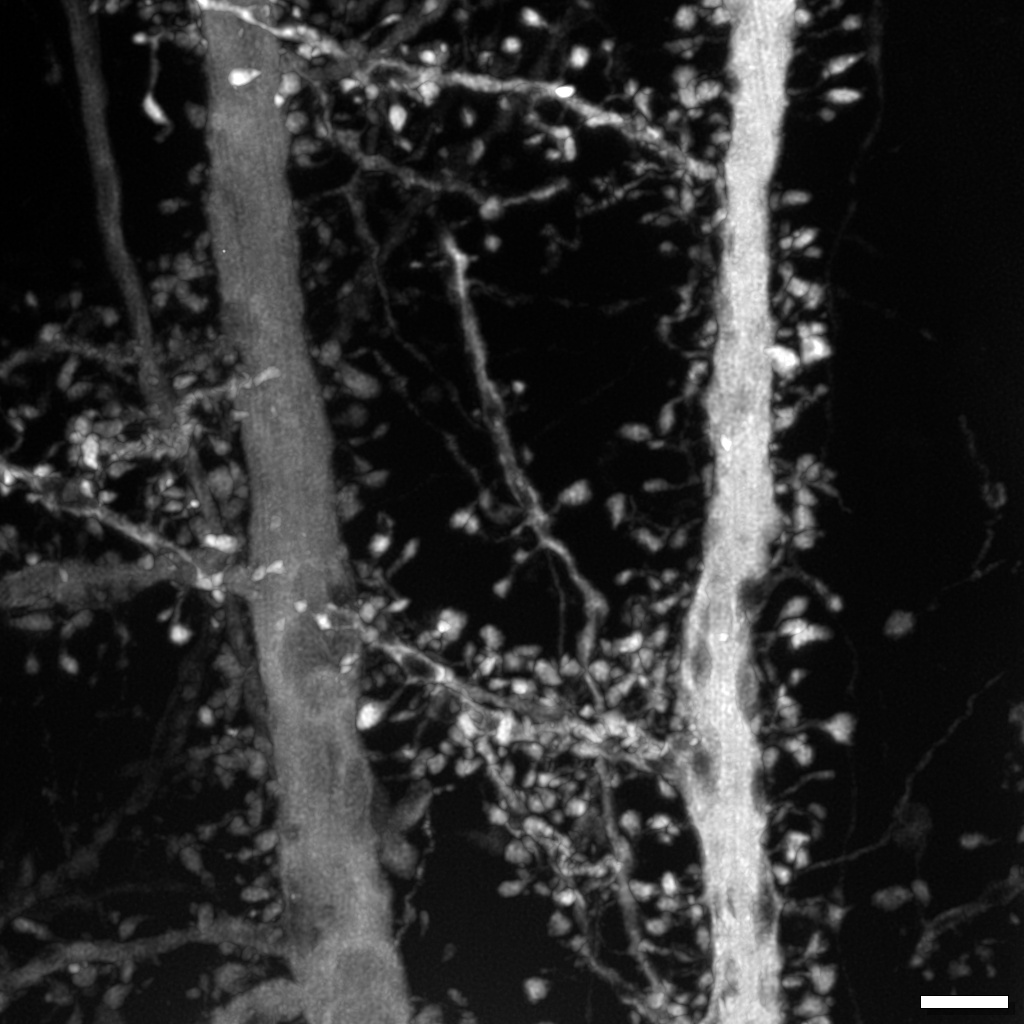

µm maximum intensity projection of a mouse brain section, GFP. Scale bar 2 um. Sample courtesy of SunJin Lab Co., Taiwan. |
Rapid Super Resolution for Live CellsWith fast image acquisition and advanced algorithms, the IXplore IX85 SpinSR makes capturing super-resolution details even easier so you can discover new insights faster. Observe dynamic subcellular processes with fast, gentle live-cell imaging. | |
Confocal image
| Super-resolution image
|

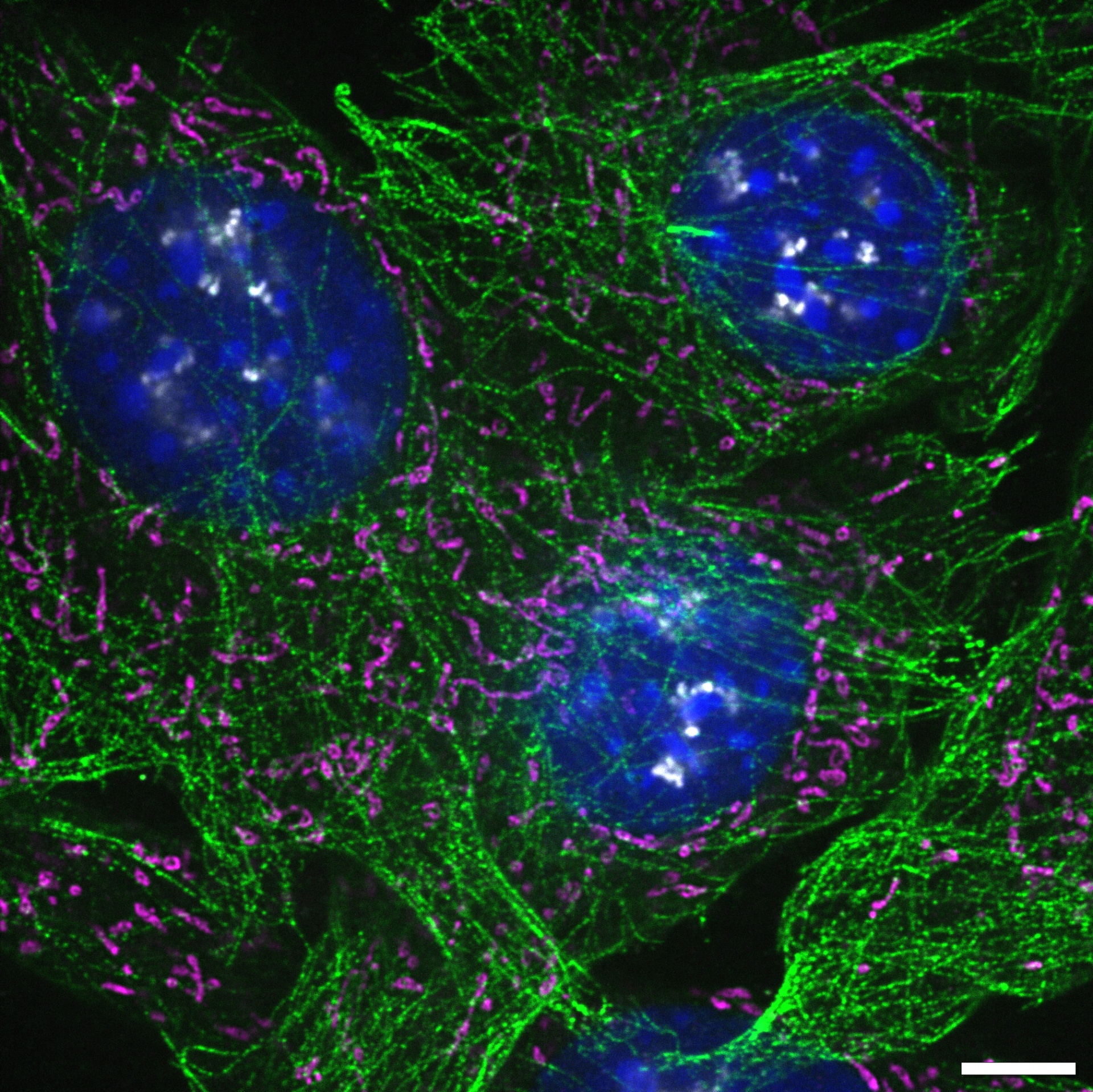

NIH3T3 cells labeled with Hoechst (blue), β-tubulin–AF555 (green), CPCA–HSP60–AF647 (magenta), and fibrillarin–AF568 (gray). Scale bar: 5 µm. Sample courtesy of EnCor Biotechnology Inc. |
Synchronized Imaging at High SpeedFeaturing a fast frame rate for super-resolution imaging, the IXplore IX85 SpinSR rapidly acquires dynamic cellular events at the nanoscale with XY resolution down to 120 nm. Capture ultra-small cellular dynamics by imaging at speeds up to 200 fps at full frame. Our real-time controller works as the system’s conductor, ensuring imaging is coordinated with microsecond accuracy. It delivers coordinated imaging even at the highest speeds, reducing the risk of sample damage with shorter exposures. | Related VideosLive super-resolution imaging of LC3-EGFP expressing U2OS cells. Acquired with the UPLSAPO100XS objective lens. |

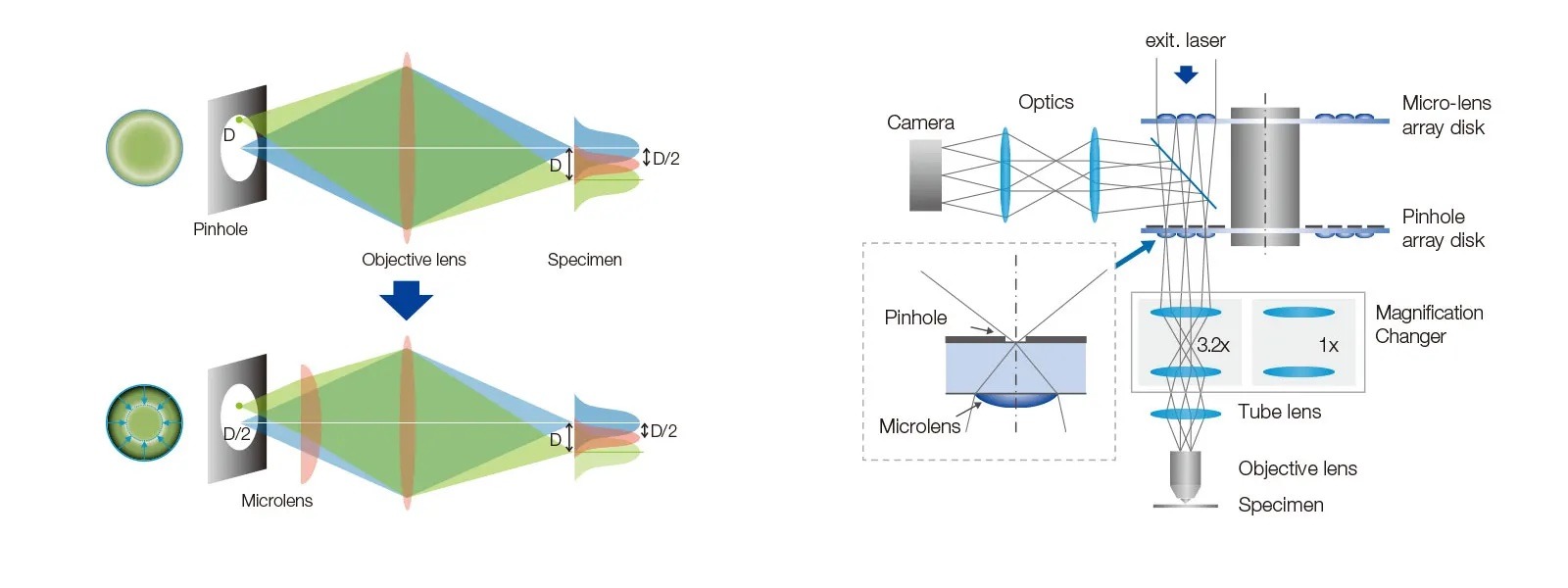

Bright Super-Resolution Images of Live CellsThe high-sensitivity model equipped with a SoRa disk realizes brighter super resolution image acquisition thanks to the spinning disk with a microlens in the confocal pinhole. Each confocal pinhole enables you to image with lower laser power, reducing photobleaching and phototoxicity in your sample while enabling bright super-resolution images. Image clarity depends on how the sample is illuminated and how efficiently the emitted light is collected. In a standard spinning disk confocal system, some light passes through the pinhole but may not be clearly resolved if it is off center. The SoRa disk addresses this by using microlenses to redirect each point of light toward the center of the pinhole, resulting in sharper, brighter images. This approach enhances resolution to nearly the best possible level—like what could be achieved with a theoretically infinitesimal pinhole. |
Reference: T. Azuma and T. Kei, "Super-Resolution Spinning-Disk Confocal Microscopy Using Optical Photon Reassignment, " Opt. Express 23, 15003-15011 (2015). |

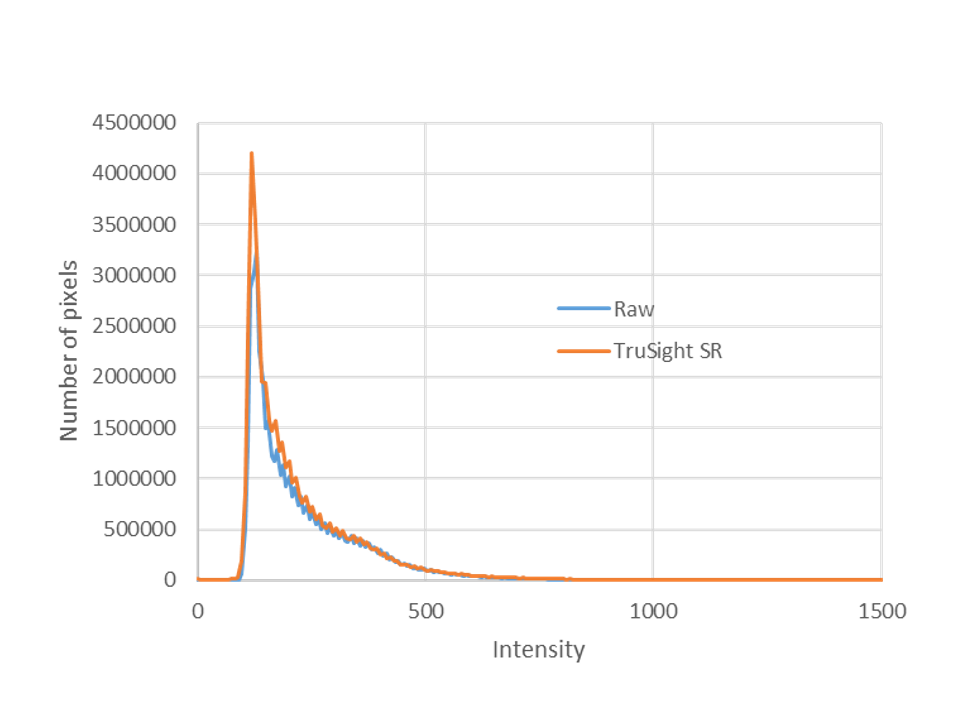

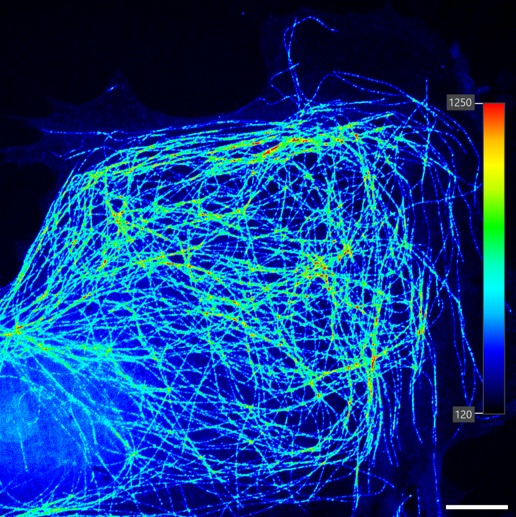

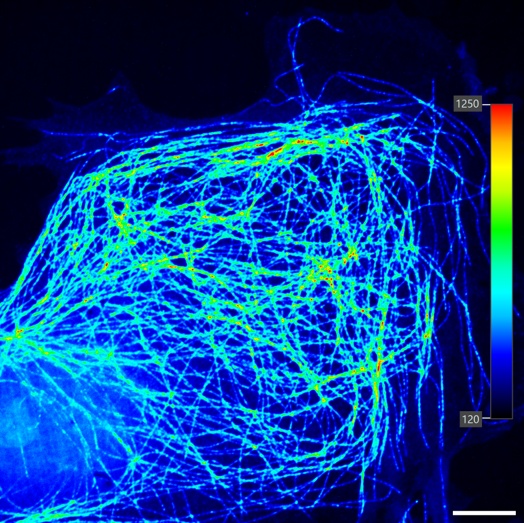

Quantitative Super-Resolution DataThe TruSight SR algorithm preserves the original image’s intensity levels, enabling you to analyze and compare the brightness of samples in super-resolution images. These stable results support quantitative analysis. | |||
|
Discover More on One PlatformAs the needs of your facility grow, the IXplore IX85 SpinSR can be expanded to meet them. With flexible frame customization options, this super-resolution system adapts to a wide range of applications.
|
|

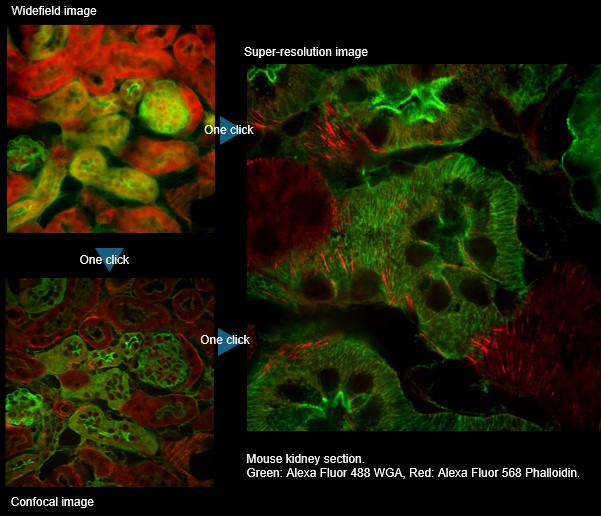

Seamless WorkflowsThe IXplore IX85 SpinSR is designed to drive efficiency with easy workflows for busy labs. Our cellSens™ software streamlines experiment setup and operation, providing you with more time to review results and make discoveries. |
|
Optimized Performance, Trusted ResultsBuilt on the stable IXplore IX85 platform and powered by Yokogawa spinning disk technology, the SpinSR system is optimized for high-performance super-resolution imaging. Our world-renowned optics add to this confidence, equipping your lab with a powerful set of tools to produce publication-ready images. Your Sample in FocusCapture high-precision, multipoint time-lapse images that are aligned and in focus with our TruFocus™ Z-drift compensator. With stable focus for long-term imaging and plate screening, you can be confident in the quality of your results. | Related VideosLC3-EGFP expressing U2OS cells. |
Range of Optimized ObjectivesEvident’s expansive range of objectives can meet any research need, pushing your super-resolution system even further. Simplified Immersion ImagingThe world’s first silicone gel pad objective (LUPLAPO25XS) combines all the quality and advantages of our silicone immersion objectives with the convenience and useability of a dry objective. | |
Left: confocal image
Our innovative multi-immersion objective with silicone gel pad technology (LUPLAPO25XS) combines all the quality and advantages of our silicone immersion objectives with the convenience and useability of a dry objective. | Right: TruSight SR image
XYZ image comparison between a LUPLAPO25XS silicone gel objective lens (left) and a UPLXAPO20X dry objective lens. Cleared HeLa* 1 cell spheroid (cyan: nuclei, magenta: microtubules). *To learn more about the origin of HeLa cells, visit henriettalacksfoundation.org. |

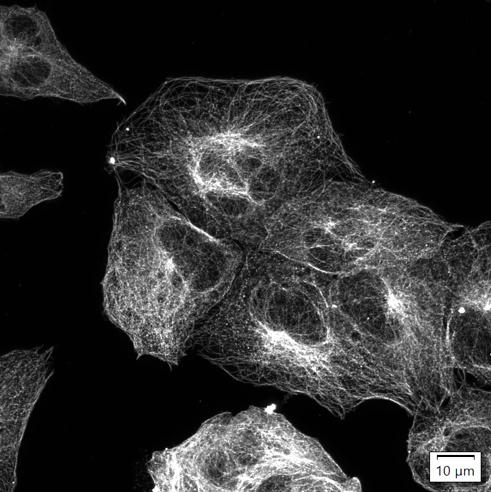

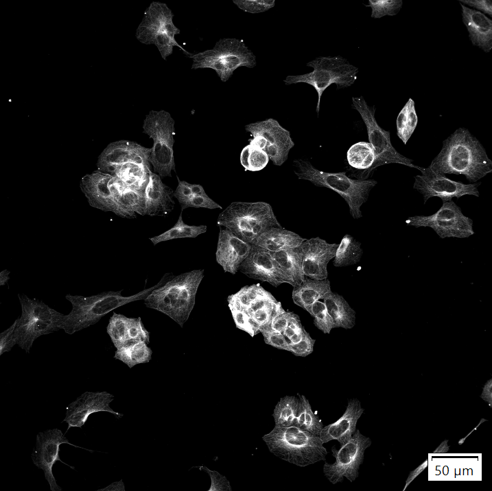

Cultured Cos-7 cells, Tubulin Alexa Fluor 488. Easily switch from a confocal image to a higher resolution image using the LUPLAPO25XS objective lens with the TruSight SR super-resolution algorithm. |
Consistent QualityX Line series objectives redefine optical performance across applications. Taking full advantage of the IXplore IX85 SpinXL’s 26.5 mm FOV, X Line objectives deliver exceptional correction of spherical and chromatic aberrations throughout a wide field of view. With high numerical apertures (NA) and outstanding transmission, they provide sharp, consistent images. |
|
Customized for Your LabEvident’s microscopy professionals will make sure you build the right IXplore IX85 SpinSR system for your lab’s unique needs. Customize every aspect of your spinning disk confocal super-resolution microscope, from the lasers to the eyepieces. | |

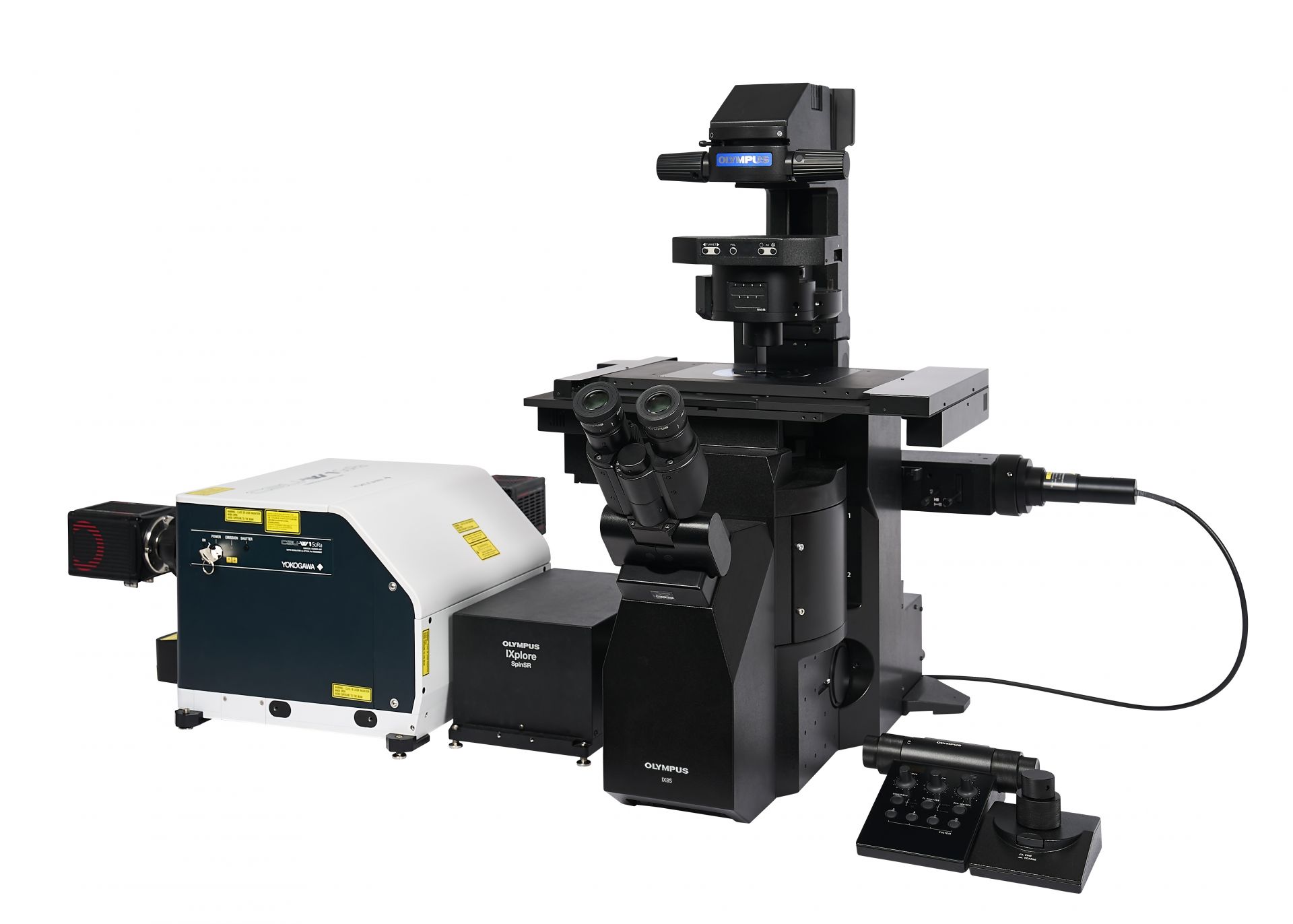

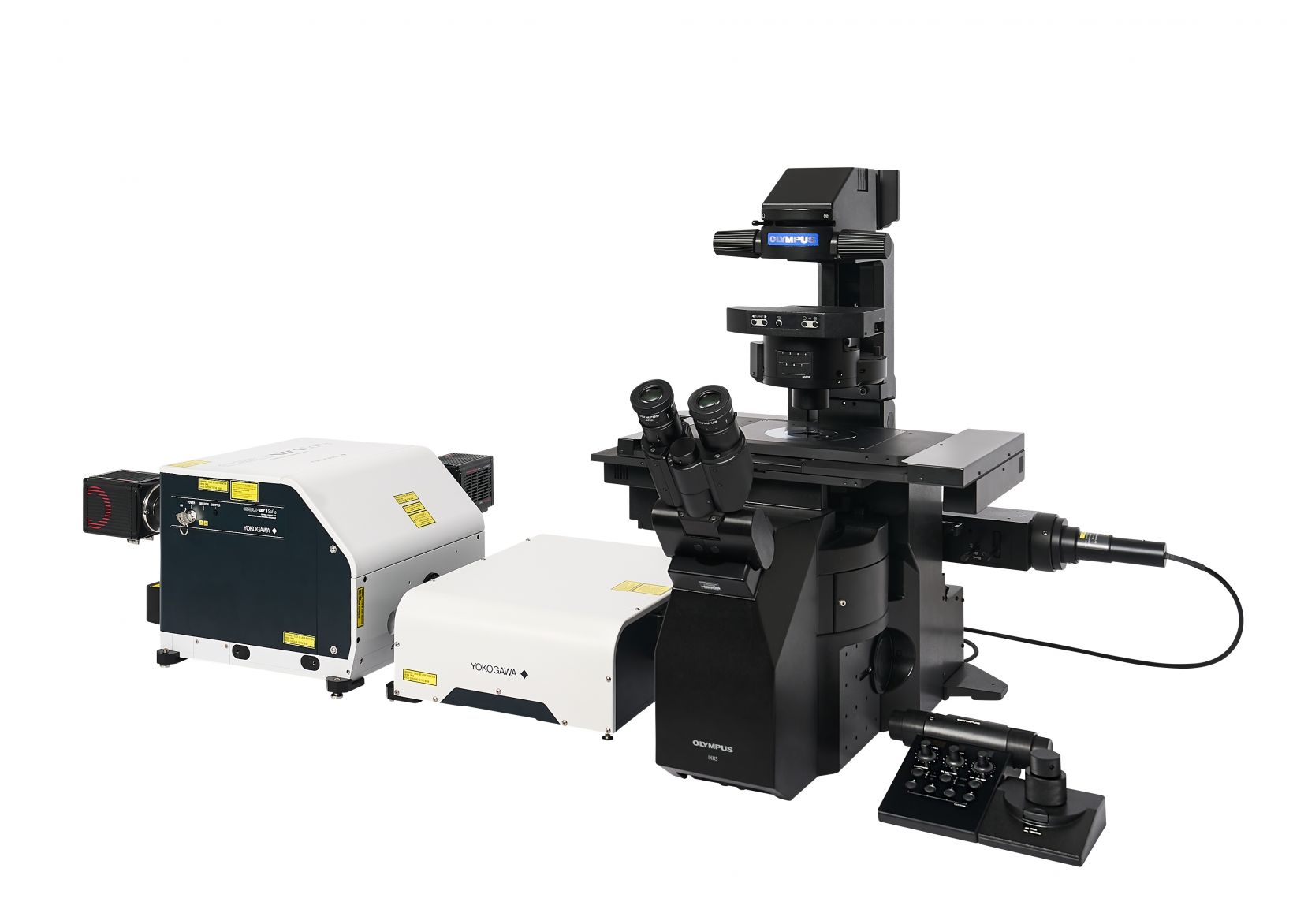

IXplore IX85 SpinSR (1-Deck System)
|

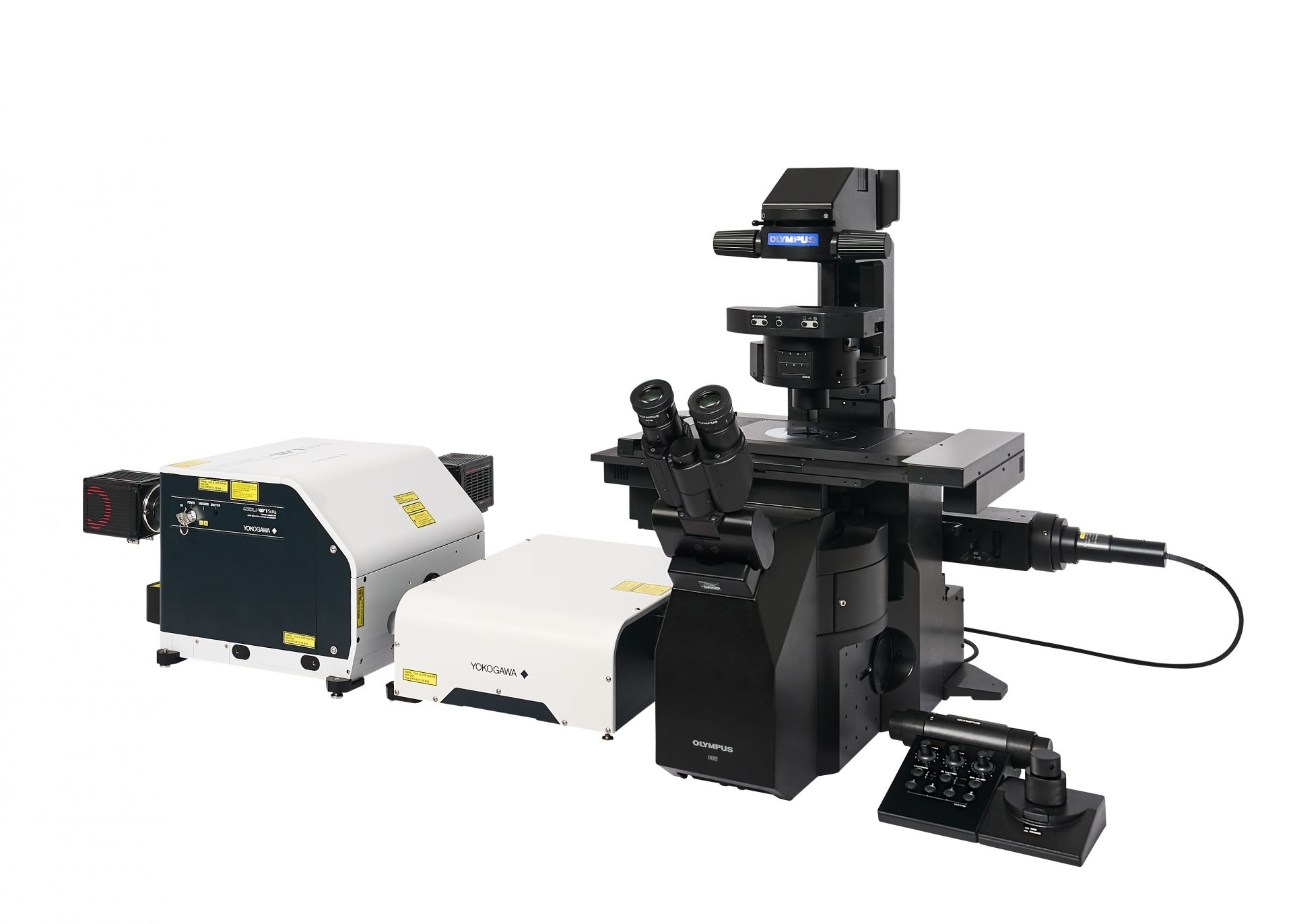

IXplore IX85 SpinSR (2-Deck System)
|
IXplore Microscopeswas successfully added to your bookmarksMaximum Compare Limit of 5 ItemsPlease adjust your selection to be no more than 5 items to compare at once |
Need assistance? |
Specifications
| Specifications | |||
| Laser | Laser Lines | 405 nm: 50 mW, 445 nm: 75 mW, 488 nm: 100 mW, 514 nm: 40 mW, 561 nm: 100 mW, 640 nm: 100 mW | |
| Combiner | Main combiner: 405 nm, 488 nm, 561 nm, 640 nm + 1 line (445 nm or 514 nm) Sub combiner: 445 nm, 514 nm | ||
| Light Control | Direct modulation, on/off control and intensity modulation with individual laser lines | ||
| Motorized Inverted Microscope | IX85P1ZF | IX85P2ZF | |
| Scanner | Disk unit | Single SoRa disk or SoRa disk and 50 µm pinhole disk | SoRa disk or 50 µm pinhole disk Maximum of 2 selectable disks |
| Camera port | 1 or 2 camera models | ||
| Dichroic Mirror | 3-position (motorized slider) | ||
| Filter wheel | 10-position (motorized wheel) | ||
| Adapter magnification | 1X / 2.8X / 4X | 1X / 3.2X | |
| Confocal Imaging | Acquisition Speed(max) | 5 ms/f | |
| Field Number | 22 | 18.8 | |
| Super-resolution Imaging | Acquisition Speed(max) | 5 ms/f | |
| Field Number | 7.9 / 5.5 | 5.9 | |
| Optical resolution** |
SoRa disk: 110 nm
50 μm pinhole disk: 120 nm | ||
| Available Objectives | LUPLAPO25XS (NA 0.85), UPLSAPO30XS (NA 1.05), UPLSAPO30XSIR (NA 1.05), UPLXAPO40X (NA 0.95), UAPON40XW340 (NA 1.15), UPLSAPO40XS (NA1.25), UAPON40XO340-2 (NA 1.35), UPLXAPO40XO (NA 1.40), UPLXAPO60XW (NA 1.2), UPLSAPO60XS2 (NA 1.35), PLAPON60XOSC2 (NA 1.40), UPLXAPO60XO (NA 1.42), UPLAPO60XOHR (NA 1.50), UPLSAPO100XS (NA 1.35), UPLXAPO100XO (NA 1.45), UPLAPO100XOHR (NA 1.50) | ||
| Imaging sensor | Third-party sCMOS camera | ||
| Imaging Software | cellSens Dimension | Multi-dimensional acquisition and analysis | |
| Super-resolution imaging module (CS-S-OSR-VF) | |||
